LED Filament Bulb A60 Amber 12W Dim - LUXRAY LIGHTING

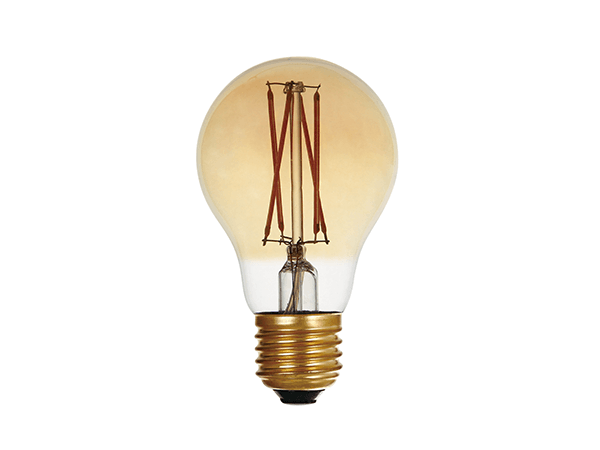

LED Filament Bulb A60 Amber 12W Dimmable

Wattage: 12W
Lumen Output: 1200lm
Voltage: AC110~130V | AC220~240V | AC100~240V
CCT: 2200K | 2700K
CRI: RA80+ | RA90+
Dimmable: Yes
Socket: E26 | E27 | B22
Size: D70*H123mm
Lifespan: 25,000hrs
Certifications: CE, EMC, LVD, REACH, ErP, ETL, RoHS

Get A Quote Now

LED MR16 Dimmable 12V Bi Pins 75W Equal Flood Light

MR16 bulbs are very widely used in both residential lighting and retail lighting. It’s common to see applications like track lighting, recessed ceiling lighting and pendant lighting. Usually a brightness of 300~500lm would be enough for ambient lighting. But sometimes you may need more lumen as a 75W halogen MR16 replacement, then this product would be your right choice.

Super Bright and Energy Efficiency

This advanced LED MR16 GU5.3 bulb emits 630 lumens yet only consumes 7.5 wattage. The electricity saving is up to 90% as a 75W traditional halogen or incandescent bulb replacement.

Dimmer and Transformer Compatibility

This LED MR16 12V bulb has great compatibility with varied traic dimmers, including trailing edge dimmers, leading edge dimmers and universal dimmers. It is also compatible with most electronic halogen transformers and LED drivers. You could download both lists under the “Download” column or email us and we will send you.

Fixture Compatibility

Our MR16 has very standard dimensions with 50mm in diameter and 48mm in height, which allows for great flexibility of varied applications even with space constrains.

Good thermal management and Long Lifespan

Using pure aluminium as heat sink materials, the MR16 bulb has very good heat conduction and the lifetime is up to 25,000 hours for LM70, which means the brightness is 70% remaining of the initial lumen output after lighting up for 25,000hrs.

Model No. TMR16ADV-7.5W-XD
Socket/Base GU5.3
Voltage AC/DC 12V
Wattage 7.5W
Lumen 630lm
CRI RA80+ or RA95+
Beam Angle 24°/36°/60°
Dimmable Yes
Flicker Free Yes
CCT. 3000K
Material Aluminium
Product Size Dia: 50mm, Height: 48mm
Weight 53g
Working Temp. -20°~+40°
IP Grade IP20
Energy Efficiency A+
Lifespan 25,000 hours
Warranty 2 years

Dimmer Compatibility List

For the LED MR16 12V dimmable spot light bulbs, we have tested many brands dimmers like ABB, AURORA, Clipsal, Legrand, Schneider etc. There are totally 27 different dimmers brands and 65 different models been tested, which include trailing edge dimmers, leading edge dimmers and universal dimmers. Click the tile to check if your most regular dimmers are also compatible with our products, or you may simply send an email to sales@luxraylighting.com and we shall reply within 12 hours.

Transformers Compatibility List

For 12V MR16 LED bulbs it’s also very important that the bulb has great compatibility with different transformers for both electronic and LED. As sometimes they need to be able to work with existing drivers as a halogen or incandescent replacement. Luxray has also provided a transformer list up to 73 different models including manufacturers like Philips, Osram, Tridonic and many other brands. Click the title to check but please note that they are just part of transformers we have tested, you may find your transformers out of the list but could also work with the bulb perfectly.

If you are looking for other technical files like datasheet, Light Test Reports or IES files please write us and ask for them.

Under preparing, will be upload soon. Thanks for your attention. 🙂
