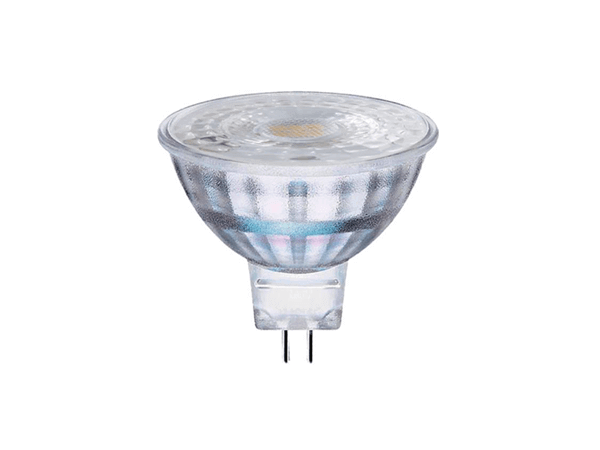

LED MR16 12V GU5.3 5.5W 450lm high CRI

LED MR16 12V GU5.3 5W 450lm

Wattage: 5W
Lumen Output: 450lm
Voltage: 12Volt DC
CCT: 3000K
CRI: RA80+
Dimmable: No
Beam Angle: 38°/60°
Size: D50*H46mm
Lifespan: 25,000hrs
Certifications: EMC, LVD, REACH

Get A Quote Now

LED MR16 12V GU5.3 35W Equal Spot lights

This LED MR16 12V is a brilliant replacement of conventional halogen MR16. You could find it with exactly 1:1 compact size, and its integrally molded glass also maintains the beauty in aesthetics. The light output is 450lm for warm white color, which meets the brightness request of both general lighting and ambient lighting. Energy saving and environment friendly, it’s strongly recommended if you are considering to replace the old halogen ones at your home or have a project to retrofit.

Energy Efficiency

This classic LED MR16 12V GU5.3 bulb emits 450 lumens yet only consumes 5 wattage, bringing an electricity saving of 86% as a 35W traditional halogen or incandescent bulb replacement.

Transformer Compatibility

This LED MR16 12V bulb has great compatibility with varied transformers, both electronic and LED. You could download the list under the “Download” column or email us and we will send you.

Fixture Compatibility

Our MR16 has very standard dimensions with 50mm in diameter and 46mm in height, which allows for great flexibility of varied applications even with space constrains.

Good thermal management and Long Lifespan

Using pure aluminium as heat sink materials, the MR16 bulb has very good heat conduction and the lifetime is up to 25,000 hours for LM70, which means the brightness is 70% remaining of the initial lumen output after lighting up for 25,000hrs.

Model No. TMR16CLA-5.5W-XD
Socket/Base GU5.3
Voltage DC 12V
Wattage 5W
Lumen 450lm
CRI RA80+
Beam Angle 38°/60°
Dimmable No
Flicker Index 0.087
CCT. 3000K
Material Glass+Aluminium
Product Size Dia: 50mm, Height: 46mm
Weight 44g
Working Temp. -20°~+40°
IP Grade IP20
Energy Efficiency A++
Lifespan 25,000 hours
Warranty 2 years

Transformers Compatibility List

For 12V MR16 LED bulbs it’s very important that the bulb has great compatibility with different transformers for both electronic and LED. As sometimes they need to be able to work with existing drivers as a halogen or incandescent replacement. Luxray has also provided a transformer list up to 73 different models including manufacturers like Philips, Osram, Tridonic and many other brands. Click the title to check but please note that they are just part of transformers we have tested, you may find your transformers out of the list but could also work with the bulb perfectly.

If you are looking for other technical files like datasheet, Light Test Reports or IES files please write us and ask for them.

Under preparing, will be upload soon. Thanks for your attention. 🙂
