Project Description

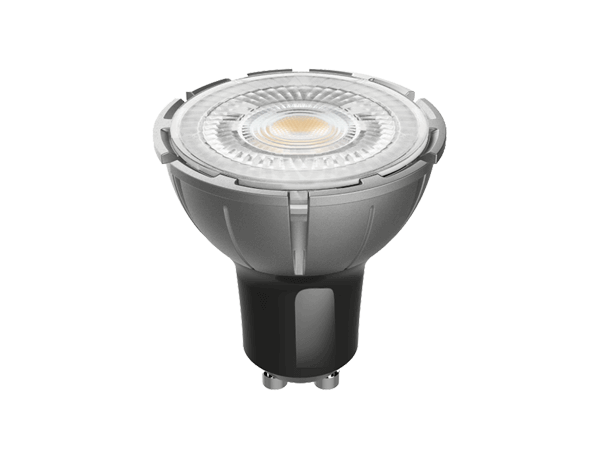

LED GU10 7W Dimmable 230V 75W Halogen Replacement
The LED GU10 7W spotlight combines the features of both aesthetics and the latest LED technology. Besides innovative appearance, the light distributed is soft and focused without shadow and dark area, it’s also comfortable with eyes contact with low glare. It’s very powerful with high lumen deficiency 80lm/w and 90% energy savings. What’s more impressive is its excellent dimming with good compatibility on varied dimmers.
Super Bright and Energy Efficiency
This LED GU10 7W dimmable spotlight emits 600 lumen yet only consumes 7.5 wattage, bringing an electricity saving of 90% as a 75W traditional halogen bulb replacement.
Dimmer Compatibility
This LED GU10 7W MR16 has great compatibility with varied traic dimmers, including trailing edge dimmers, leading edge dimmers and universal dimmers. The dimming range could be from 5% to 100% without noise and flicker. LUXRAY has tested at its lab many dimmers as an reference for our customers. You could download the dimmer list under the “Download” column or email us to receive it.
Good thermal management and Long Lifespan
Using pure aluminium as heat sink materials, this GU10 MR16 bulb has very good heat conduction and the lifetime is up to 25,000 hours for LM70, which means the brightness is 70% remaining of the initial lumen output after lighting up for 25,000hrs.
Fixture Compatibility
Despite of the powerful wattage and a high luminous efficacy of 80 lumen per watt, this LED GU10 spotlight has standard dimensions with 50mm in diameter and short height in 57mm, which makes it possible for flexible application like track lighting, recessed down lights, display lighting even with space limitation.
Model No. | TGU10ADV-7.5W-XD |
Socket/Base | GU10 |
Voltage | AC220-240V |
Wattage | 7.5W |
Lumen | 600lm |
CRI | RA80+ or RA95+ |
Beam Angle | 24°/36°/60° |
Dimmable | Yes |
Flicker Index | 0.028 |
CCT. | 3000K |
Material | Aluminium |
Product Size | Dia: 50mm, Height: 57mm |
Weight | 66g |
Working Temp. | -20°~+40° |
IP Grade | IP20 |
Energy Efficiency | A+ |
Lifespan | 25,000 hours |
Warranty | 2 years |
Dimmer Compatibility List
For this LED GU10 7W dimmable spot, we have tested many brands dimmers like ABB, AURORA, Clipsal, Legrand, Schneider etc. There are totally 27 different dimmers brands and 65 different models been tested, which include trailing edge dimmers, leading edge dimmers and universal dimmers. Click the tile to check if your most regular dimmers are also compatible with our products, or you may simply send an email to sales@luxraylighting.com and we shall reply within 12 hours.
If you are looking for other technical files like datasheet, Light Test Reports or IES files please write us and ask for them.
Under preparing, will be upload soon. Thanks for your attention. 🙂
